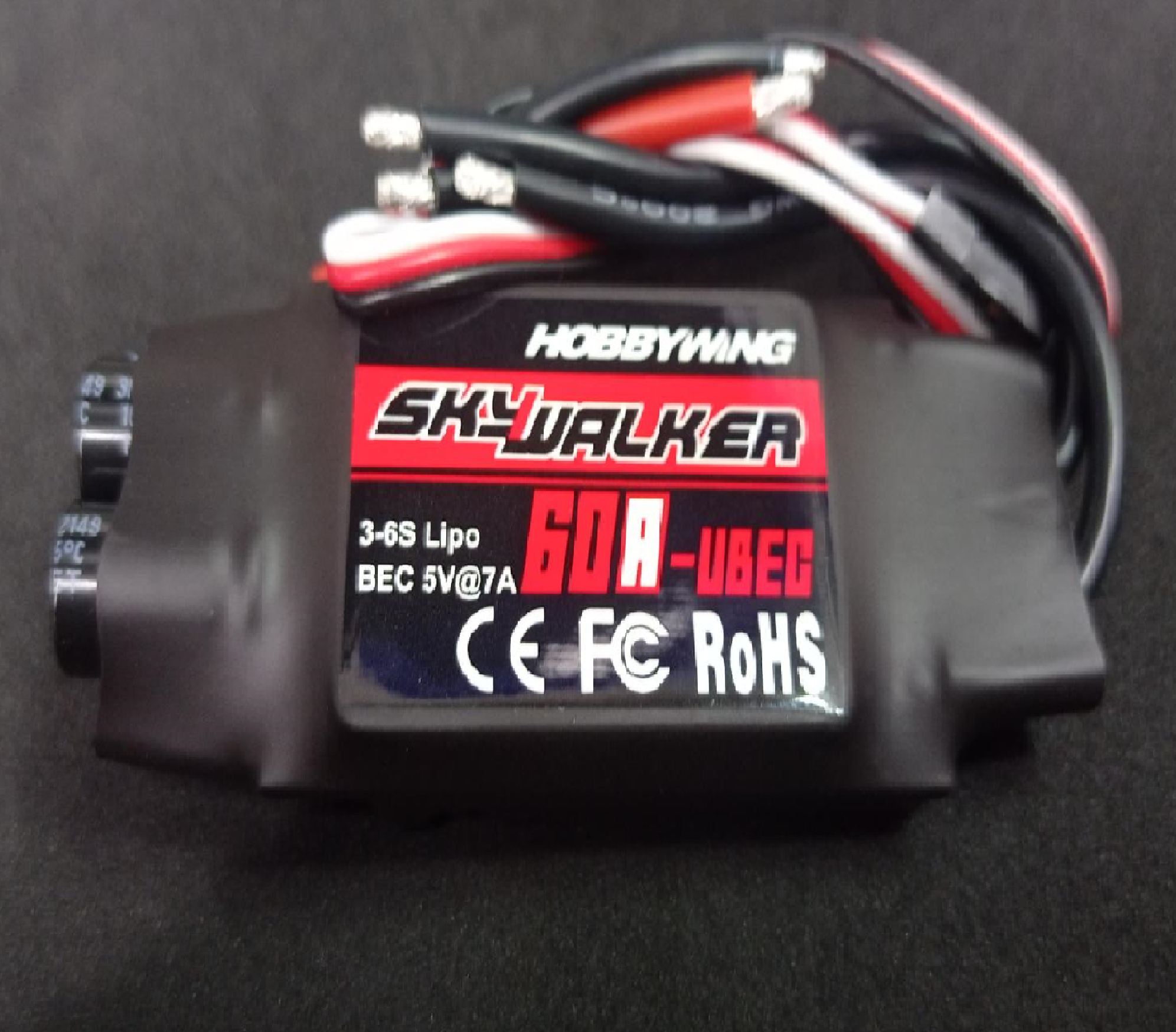

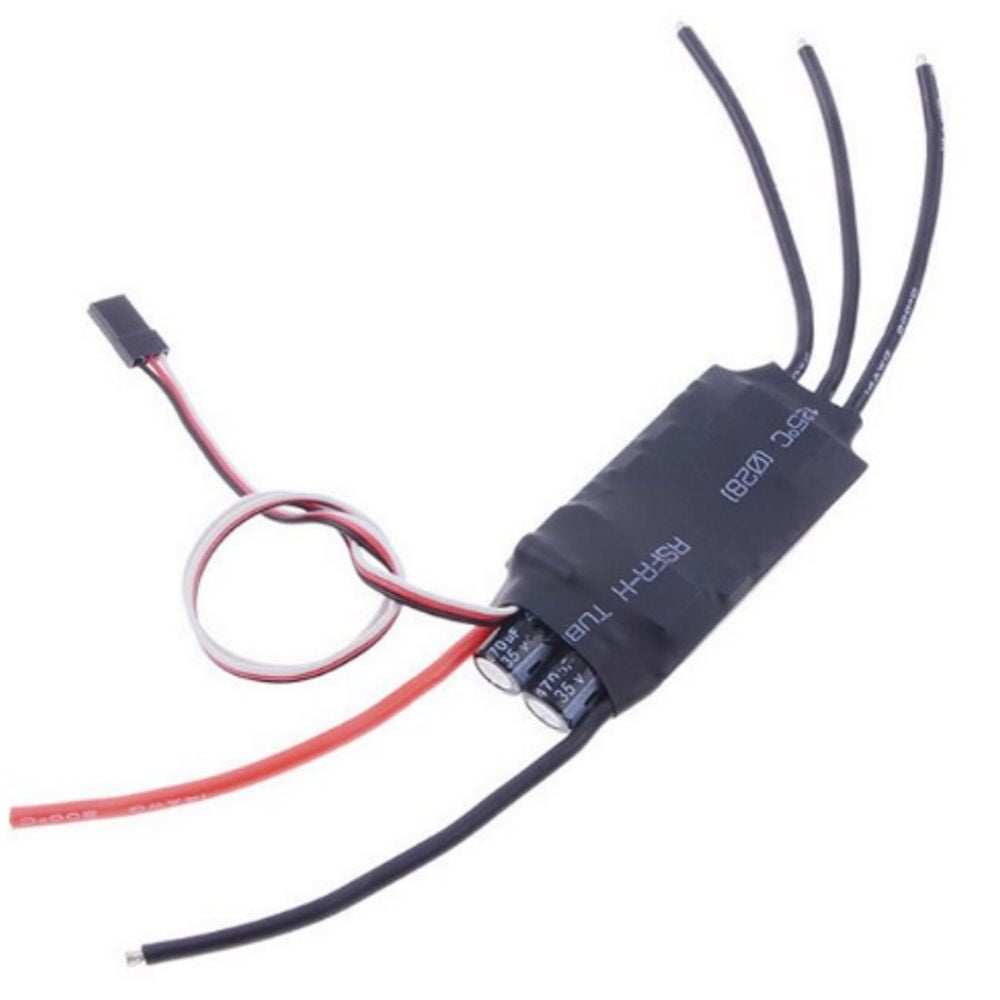

speed controllerSkywalker-60A-UBEC
SKYWALKER series of affordable brushless power systems feature high performance, quality components and impressive craftsmanship is the best choice for new beginners. Hobbywing Skywalker-60A- UBEC 3A 2-6S Brushless ESC SW60A.
1.Safety arming feature: Regardless of the throttle stick position, the motor will not spin after the battery is connected.
2. Throttle calibration function: The throttle range can be calibrated to be compatible with different transmitters.
3 .User programmable.
4 .Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at th.e flying field.
5. Compatible with Lipo and NiMH battery.
6. Timing can be changed to be suitable for different brushless motors.
7. Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
| Output |
Continuous 60A, Burst 80A up to 10 seconds |
|---|---|
| Input Voltage |
3-6S Lipo, 5-18 cells NiMH |
| Refresh rate of the throttle signal |
50Hz to 432Hz |
| Max Speed |
210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. |
