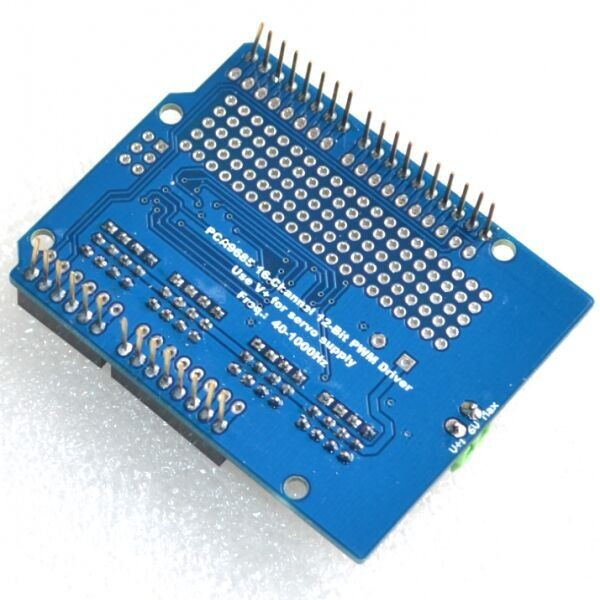

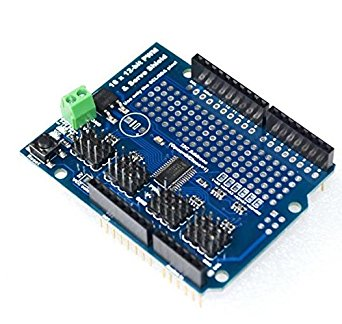

Servo Driver Module Shield 16 Channel
- The I2C input, PWM output control 16 roads, steering gear can 16 roads.
- The steering gear power independent V + input maximum 6 V.
- Logic signals and logical power independent output for 3V to 5 V.
- 40-1000 Hz frequency.
- You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output.
12
Items sold in last 3 minutes
10
People watching this product now!
Description
- Terminal block for power input (or you can use the 0.1″ breakouts on the side)
- Reverse polarity protection on the terminal block input
- Green power-good LED
- 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1″ so you can only stack 4 next to each other on 0.1″ header
- “Chain-able” design
- A spot to place a big capacitor on the V+ line (in case you need it)
- 330-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
- Solder jumpers for the 6 address select pins
Additional information
| No. of Channels |
16 |
|---|---|
| Resolution |
12 |
| Shipping Dimensions |
8 × 6.5 × 3 cm |
