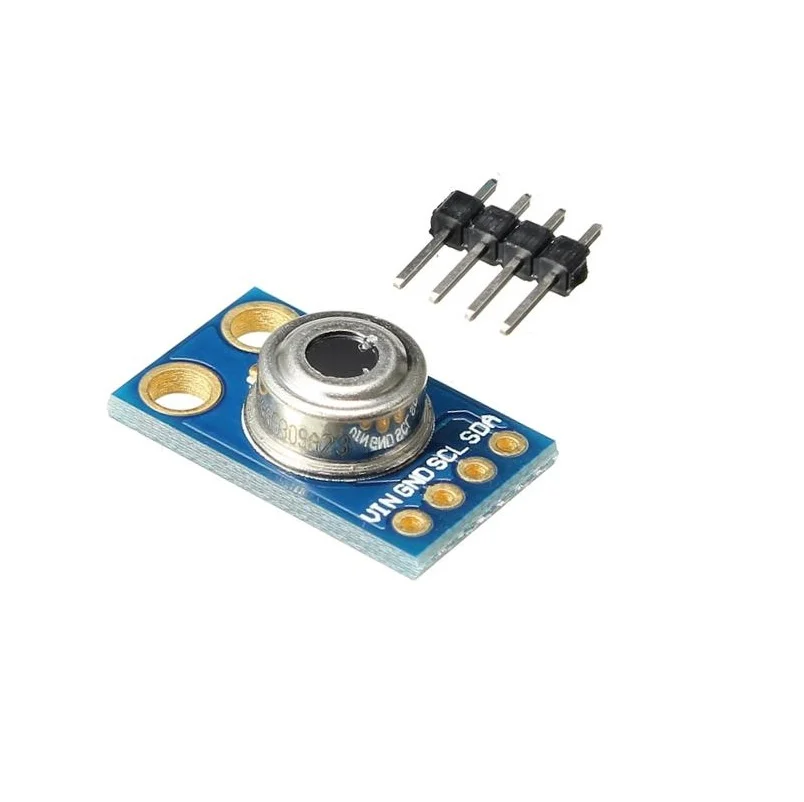

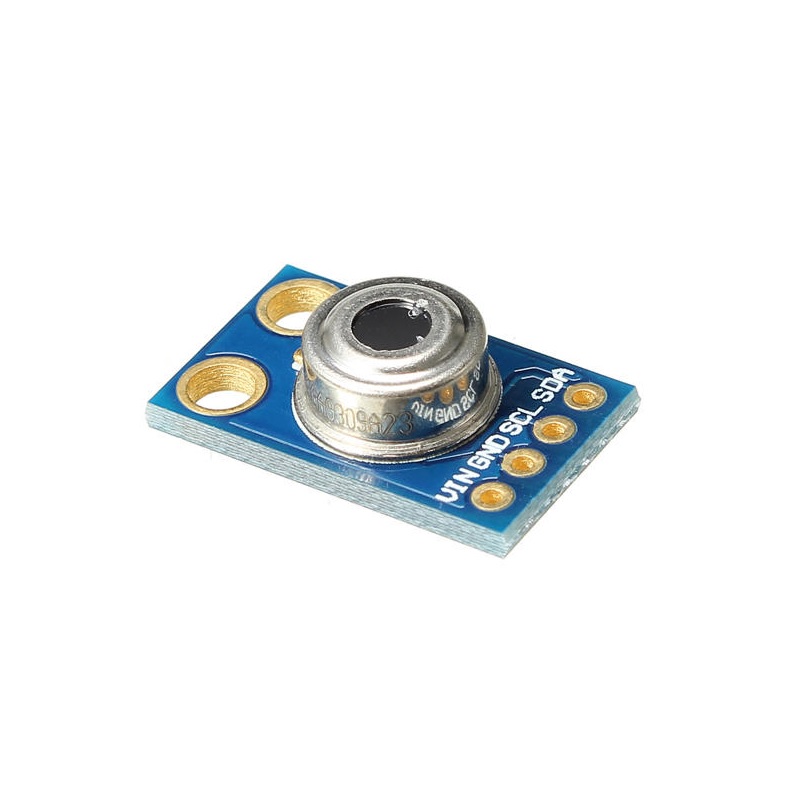

MLX90614 Module GY906
If You are wandering to Build a Device Which is used to measure the temperature of a hot object like machines, flames, hot iron, device CPU. Then this MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module is Needed for you.
The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
10
Items sold in last 3 minutes
15
People watching this product now!
Description
- Works from 3.3V to 5V input, Module has power regulator IC built-in.
- Standard I2C interface with built 2x pull up resistors
- When measuring the temperature, please maintain a measuring distance of 1 cm
- Small size, low cost
- Easy to integrate
- The factory was calibrated in a wide temperature range: -40 to 125 °C for sensor temperature and -70 to 380 °C for object temperature.
- High accuracy of 0.5°C over the wide temperature range (0..+50 C for both Ta and To)
- Medical accuracy of 0.1°C in a limited temperature range available on request
- The measurement resolution of 0.01°C
- SMBus compatible digital interface for fast temperature readings and building sensor networks
- Customizable PWM output for continuous reading
- Simple adaptation for 8 to 16V applications
Additional information
| Operating Voltage(V) |
3-5 |
|---|---|
| Operating Current(mA) |
2 |
| Sensor working temperature( Degree C) |
-40 to +125 |
| Sensing temperature range(Degree C) |
-70 to +380 |
