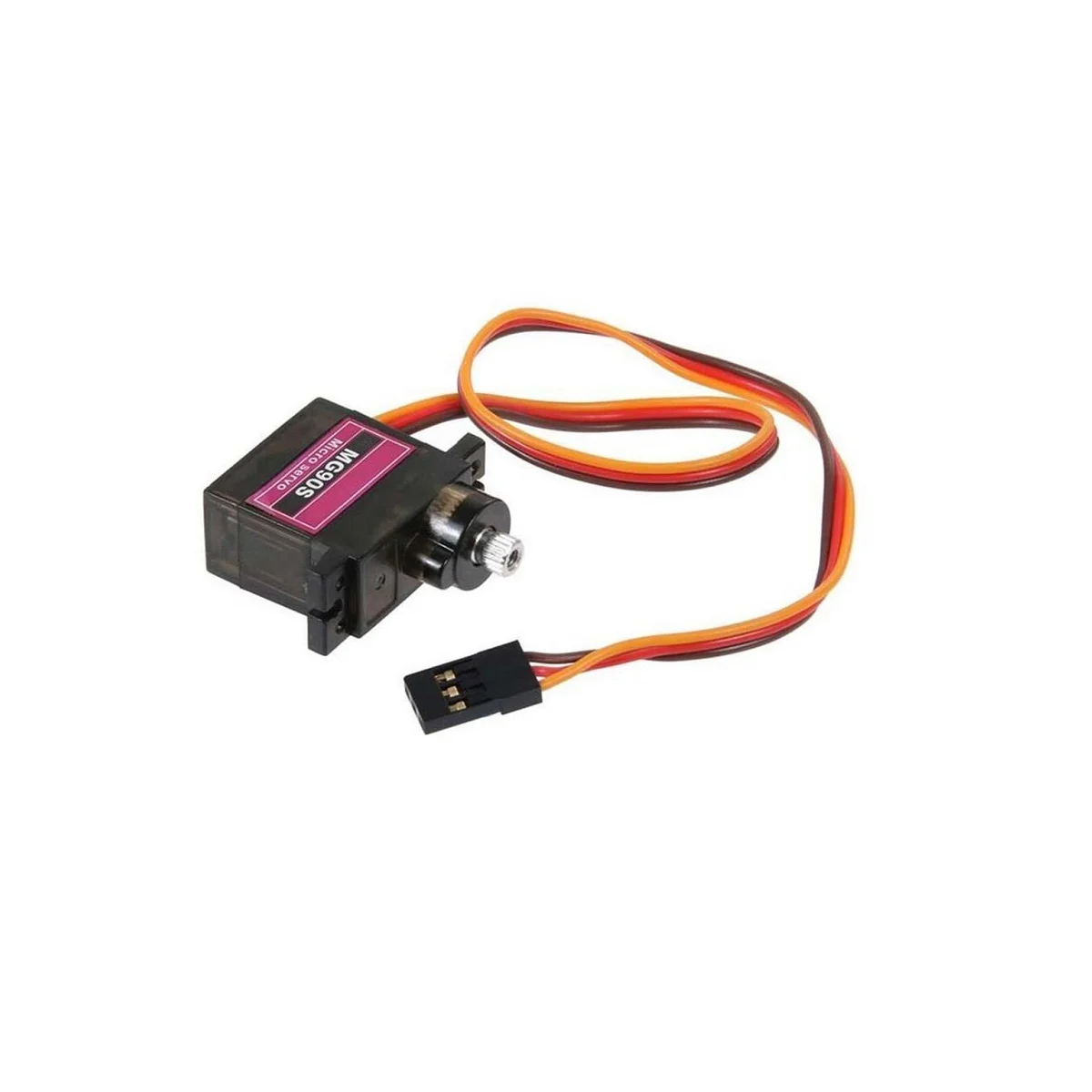

MG90S 9g Servo Metal Gear
You can expect this micro servo to rotate up to 90 degrees. You can expect it to operate the same as standard versions, but this micro servo is much smaller and can fit into tighter spaces. Even though it has metal gears, this tiny little servo weighs only 13.4g, so a good choice for smaller projects.

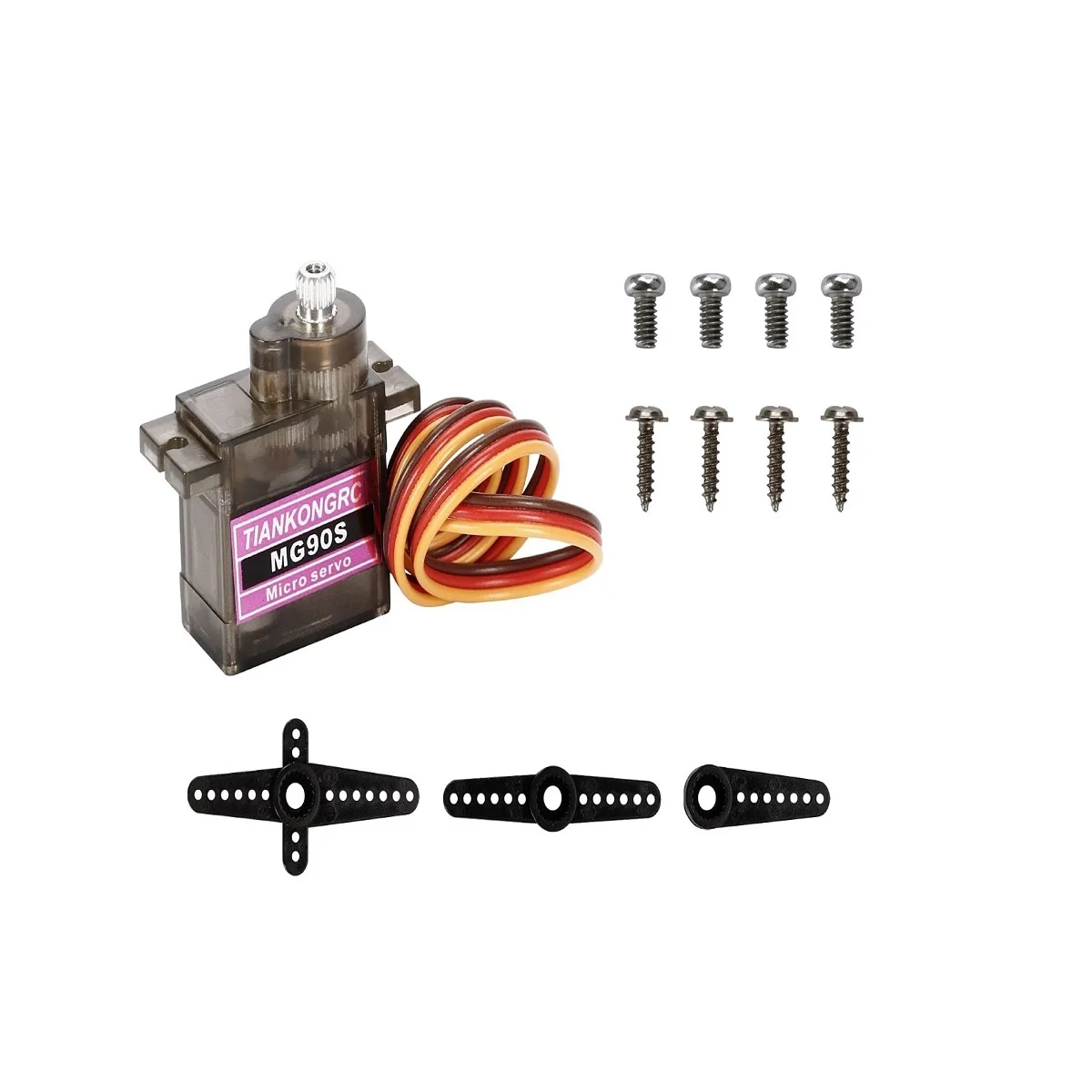

Each servo comes with 3 arms and screws and with pre-soldered female wires. When using servos, we recommend using pin 9 or 10, a standard in the Servo library.
18
Items sold in last 3 minutes
17
People watching this product now!
Description
- Dimensions: 23 x 12.2 x 29mm
- Operating Speed (4.8V no load): 0.11sec / 60 degrees
- Operating Speed (6.0V no load): 0.10sec / 60 degrees
- Stall Torque (4.8V): 2.0 kg/cm
- Stall Torque (6.0V): 2.5 kg/cm
- Temperature Range: 0 to 55 degree C
- Rotation angle: 360 °
- Dead Band Width: 15 Microsecond
- Operation Voltage: 4.8 – 6.0 Volts
- Recommend Model: Mini Car / Mini Ship /Helicopter & Airplane
Additional information
| Operating Voltage (VDC) |
4.8 – 6.0 Volts |
|---|---|
| Operating Speed @4.8V |
0.11sec / 60 degrees |
| Operating Speed @6.6V |
0.10sec / 60 degrees |
| Operating Temperature (°C): |
0 to 55 degree C |
