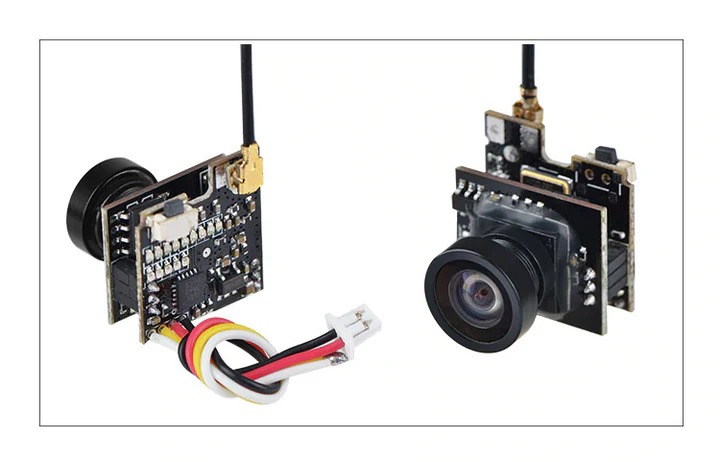

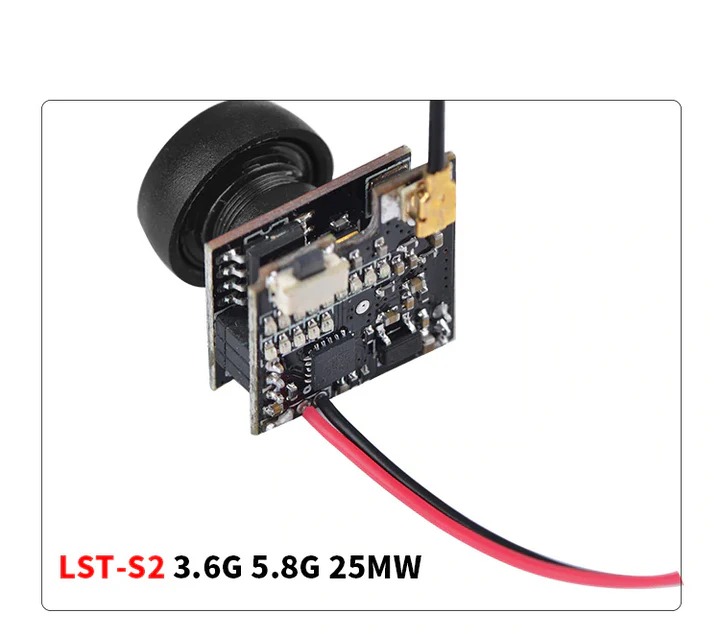

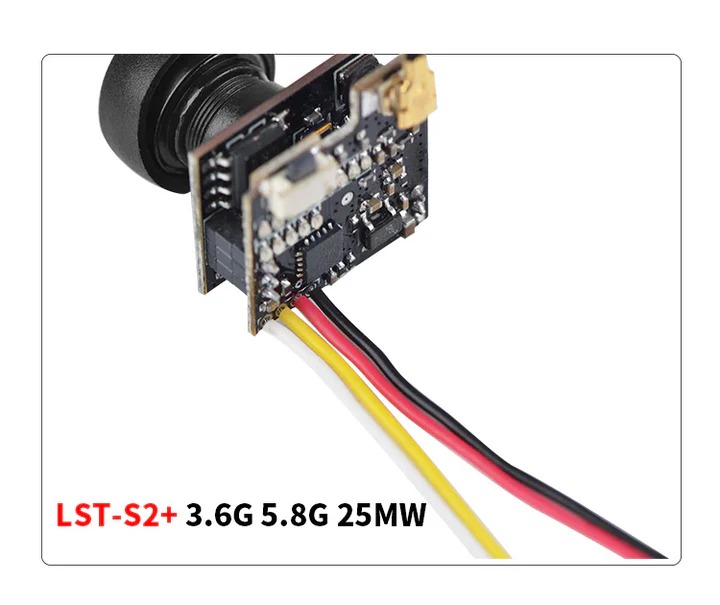

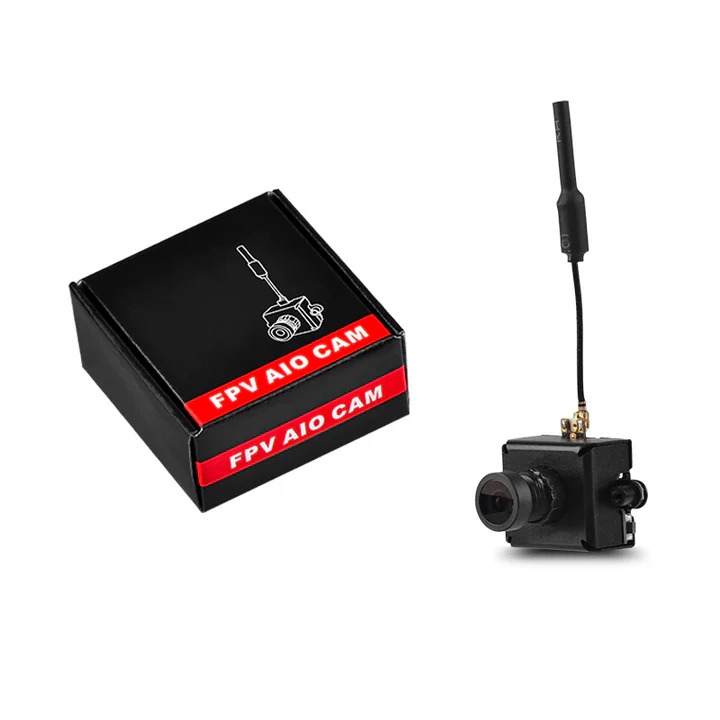

LST-S2 AIO 5.8G 40CH 25mW VTL 800TVL Camera Integrated Transmitte
₹2,800.00 Incl. GST
Button Function
Short press ( 1 sec or less ): change channels 1 – 8
Long press ( 1.5 sec ): change bands A – B – E – F – R
Long press ( 3 sec ): change NTSC/PAL system
Blue LED on = NTSC, blue LED off = PAL
All-in-one FPV video transmitter, super small volume and light weight
Horizontal viewing angle: 150 degree FOV, squint angle: 170 degree DFOV
40 channels with Race band
Video Transmitter
Support video format: NTSC / PAL
Output impedance: 75 ohm
Output signal strength: 23 – 24dBm
Output power: 25mW
Wireless channel: 40CH

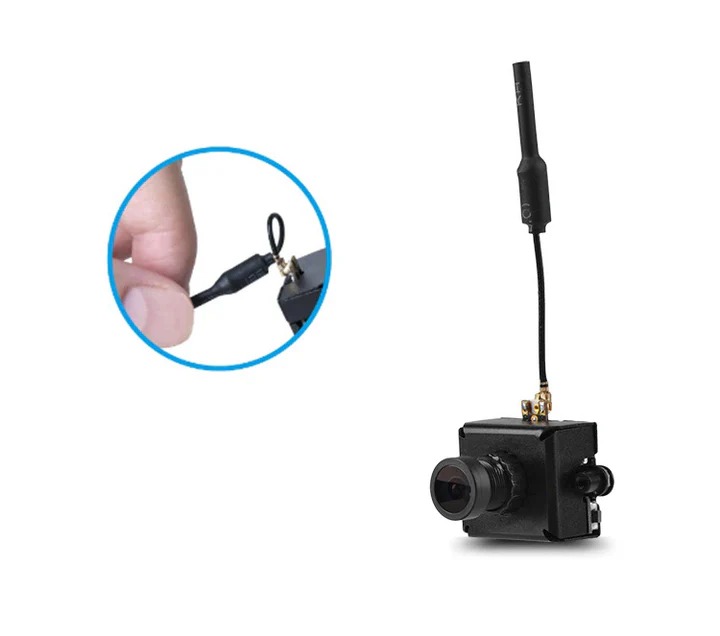

Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V – 5.5V
Current: 100mA
Audio carrier: 6.5MHz
| Sensor |
1/4 inch CMOS |
|---|---|
| LENS |
M8 800TVL |
| FORMAT |
NTSC / PAL ( switchable ) |
| Power consumption |
380mA 3.7V |
| POWER |
3.6 – 5.5V |
| Lens mirror diameter |
2.1mm IR coated FOV 150 degree ( horizontal) |
