Here 3 GPS for Pixhawk Cube
₹22,890.00 Incl. GST
Features:
- It is made of carbon fiber.
- very lightweight.
- vibration less stand.
- Looked very Attractive.
- Satellite Constellation: GPS L1C/A, GLONASS L1OF, BeiDou B1I

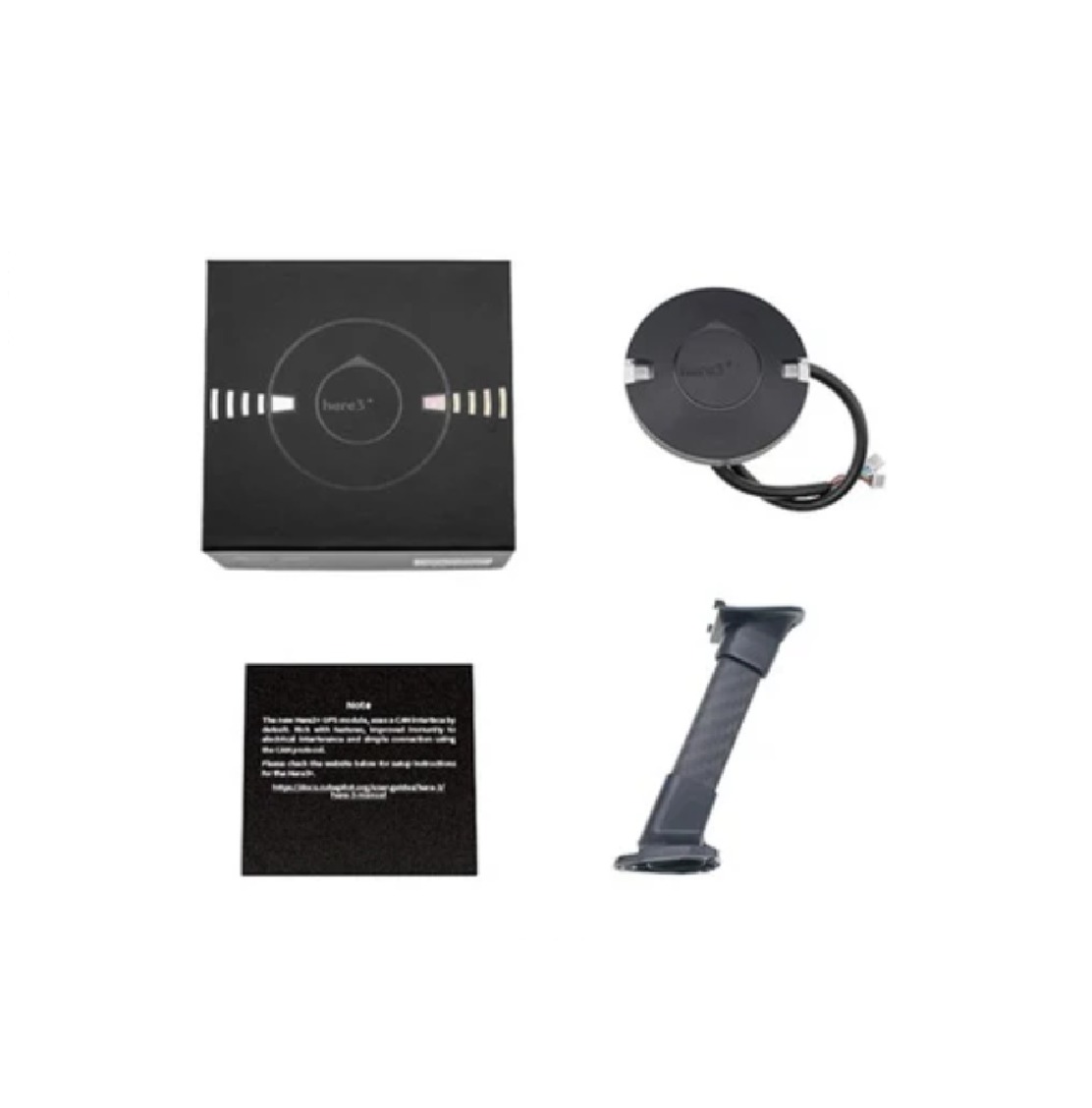

Package Includes:
1 x HEX Here3+ CAN GNSS GPS Module
1 x iStand
1 x Allen key
5 x Nuts
5 x Bolts
Here3+ GPS is a cost-efficient GNSS system that supports RTK mode with positioning accuracy down to centimeter-level in an ideal environment. See our store for the Here+ Base. Improved dust and water resistance over the original Here+ (not guaranteed to be water-proof). High data rate, upgradeability, noise immunity, and real-time features from the DroneCAN protocol. Here3+ is now moving to DroneCAN 8Mbit bus speed and supports future firmware updates. Here 3 is equipped with the STM32F302 processor while the Here3+ uses the dual core STM32H757 running at 400MHz with 2MByte Flash and 1MByte RAM. Future updates will be available from Mission Planner. Built-in IMU (compass, gyroscope, and accelerometer) for advanced navigation needs.
| Receiver Type |
u-blox high precision GNSS modules (M8P-2) |
|---|---|
| Processor |
STM32H757 |
| Communication Protocol |
DroneCAN 8Mbit/s |
| Operating Temperature (°C) |
-40 to 85 |
| Weight (g) |
51.8 |
