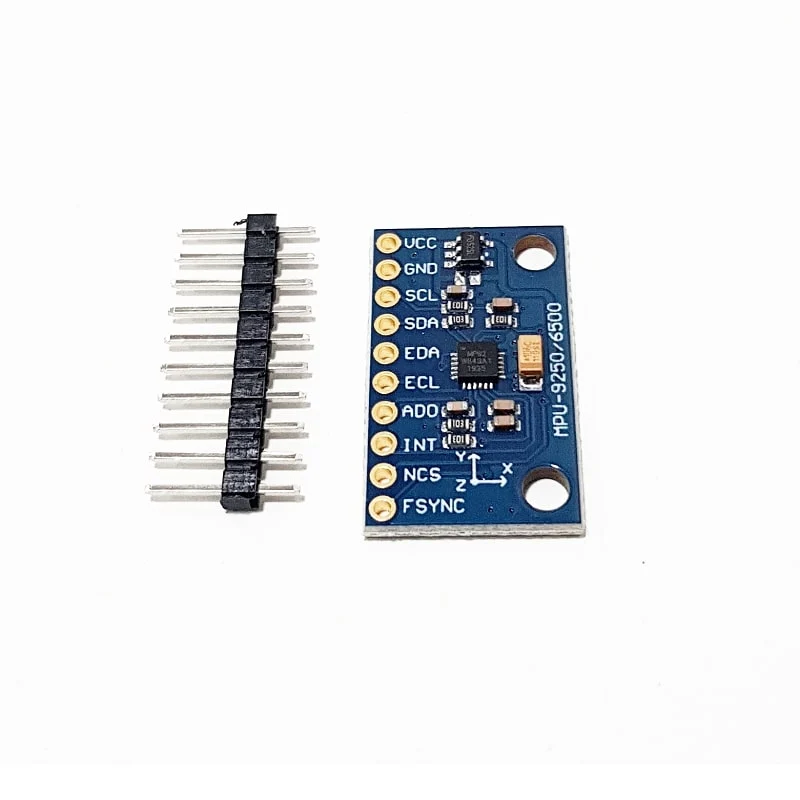

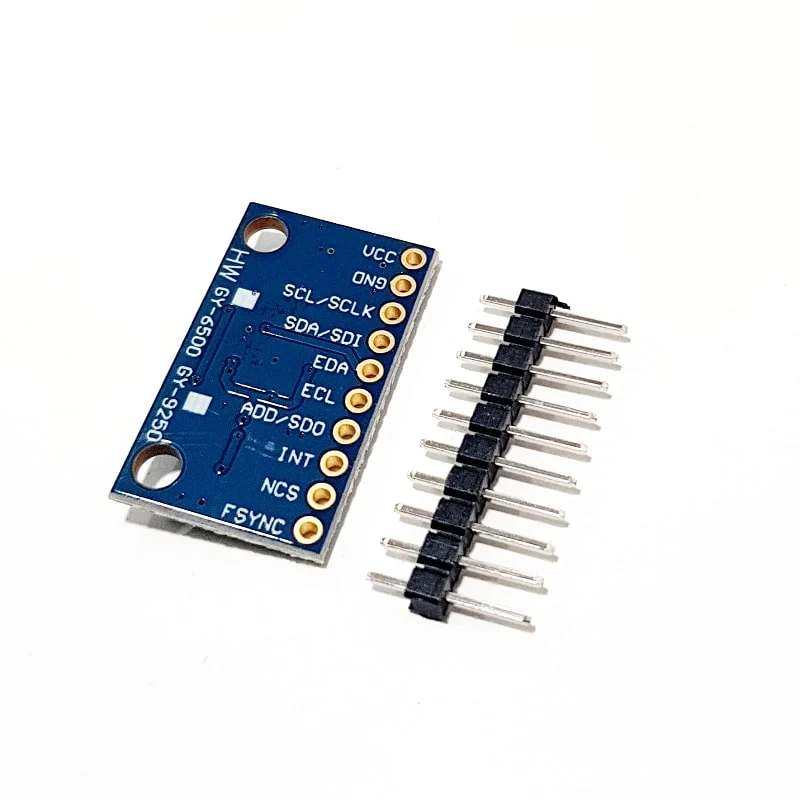

GY – 9250 MPU-9250 9 Axis Sensor Module Gyro+Accel+Magn
MPU9250 9-Axis Attitude Gyro Accelerometer Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.
18
Items sold in last 3 minutes
14
People watching this product now!
Description
- Accelerometer, Gyroscope, and Magnetometer
- 9 DOF module
- Build-in ultra-low noise linear LDO voltage regulator.
- Built-in onboard filters, which reduce noise from the motor and other high current electronics.
- All sensors are connected to the I2C bus.
- Build-in the Logic level converter for I2C.
- Power indicator LED.
- Using Immersion Gold PCB, machine welding process to ensure quality.
- On-board pull-up resistors on SDA, SCL, and nCS
- On-board pull-down resistors on FSYNC and AD0
Additional information
| Power Supply |
4.4 to 6.5 V or 3.3V (if you solder the solder jumper near the on-board voltage regulator) |
|---|---|
| Gyro range |
± 250 500 1000 2000 ° / s |
| Acceleration range |
± 2 ± 4 ± 8 ± 16g |
| Magnetic field range |
± 4800uT |
| Degree of Freedom (DOF) |
9 |
