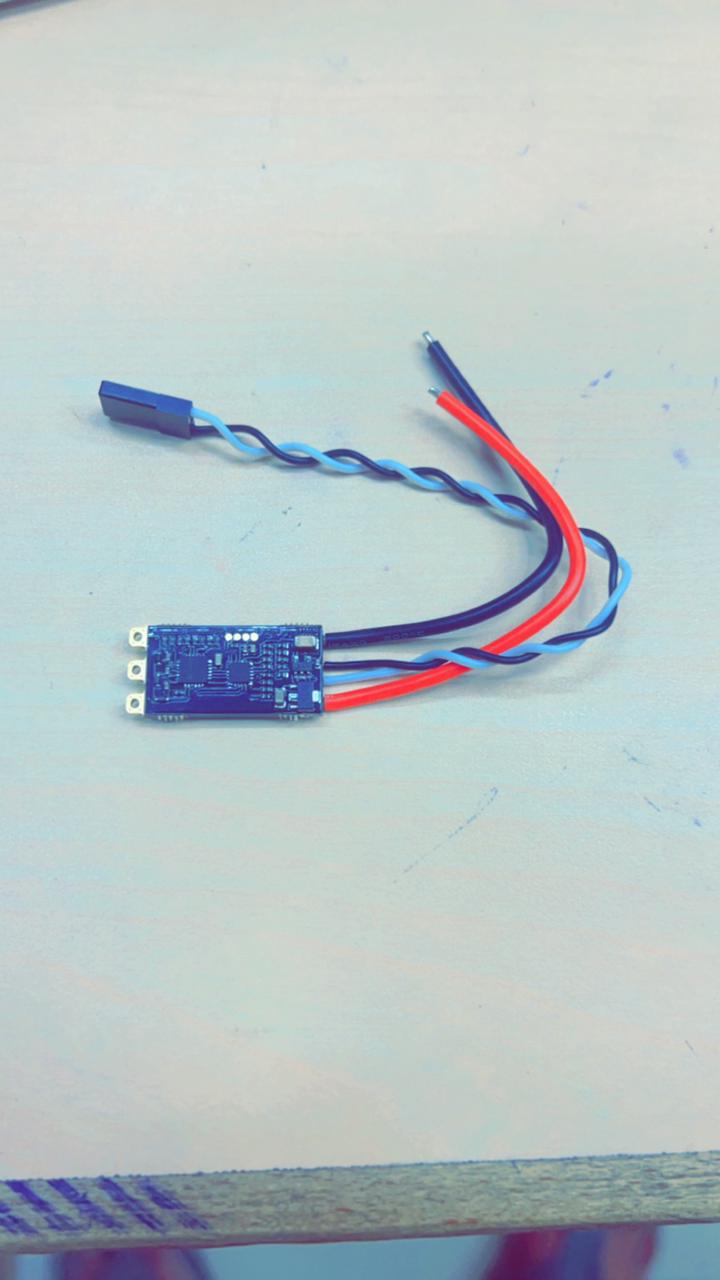

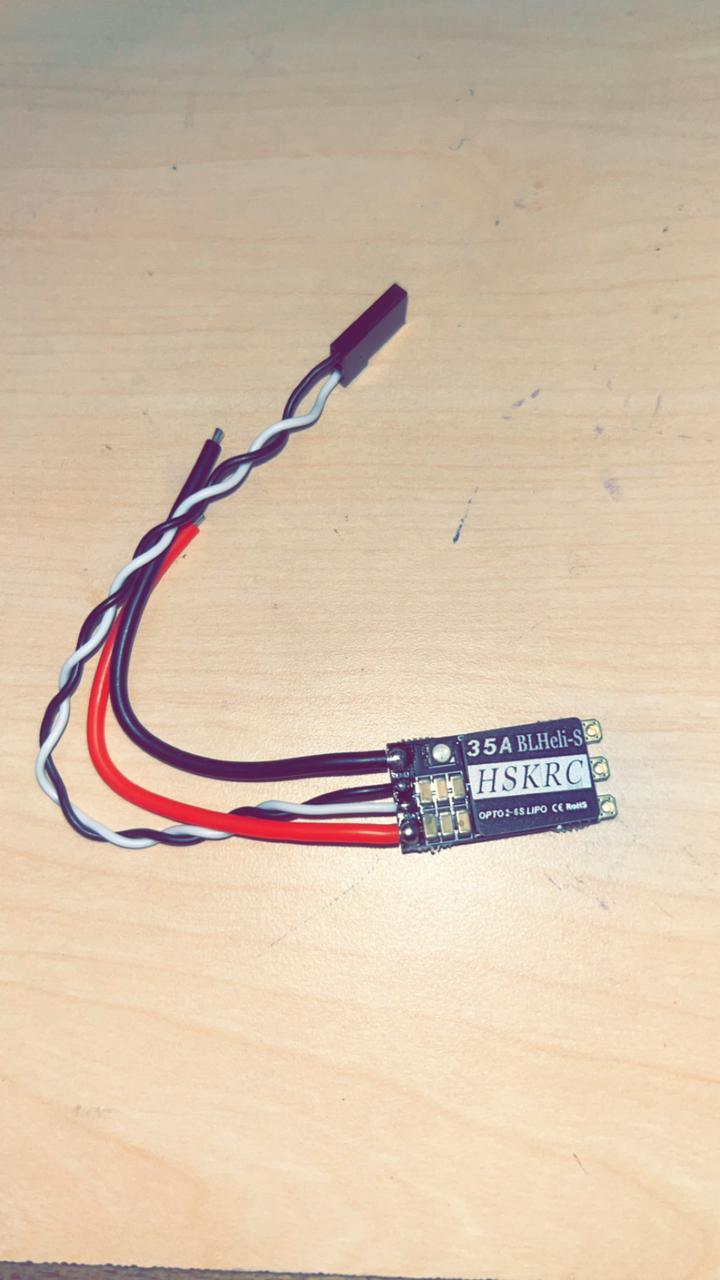

ESC 35A MINI
This HKSRC 35A ESC 2-5S Brushless ESC Speed Controller with LED adopts a 32-bit stm32f051 main control chip, which has faster response speed and processing capability. The operating frequency of up to 48MHZ and high-performance three-in-one drive make the throttle signal receiving delay lower, and the response and control of the motor change.
High speed and precision allow the flying player to enjoy the thrill and advantage of flying at speed.
13
Items sold in last 3 minutes
17
People watching this product now!
Description
Features:
- The drives scheme adopts STM32F051K66 high-performance processor, running frequency of up to 48MHZ, high-performance integrated three-in-one drive;
- The PCB adopts the design structure of the 4-layer board, which has strong temperature resistance and current resistance;
- Onboard 7 imported TDK high-voltage high-capacity MLCC capacitors with a total capacity of 320uF, lower power supply ripple and higher reliability;
- Support data return, telemetry output;
- Programmable high-brightness LED, unprecedented;
- The small size of 5.23.5*12mm, the counterbore on the pad, enables each layer to be energized after power-on;
- Support Dshot150/300/600/1200/Multishot/Oneshot drive signals;
- Active freewheeling technology to allow the battery to recover electricity and extend battery life;
- Small size, high flow resistance.
Additional information
| Continuous Current (A) |
35A |
|---|---|
| Burst Current (A) |
40 |
| Power Input |
3-6S LiPo |
| Current Sensor Input |
Support (Scale=250 Offset=-500) |
| Mounting Hole Diameter (mm) |
20 x 20mm, 3.6mm hole diameter |
| Suitable Lipo Batteries |
2 ~ 5S LiPo |
