Ds0138 Diy Osc Kit)

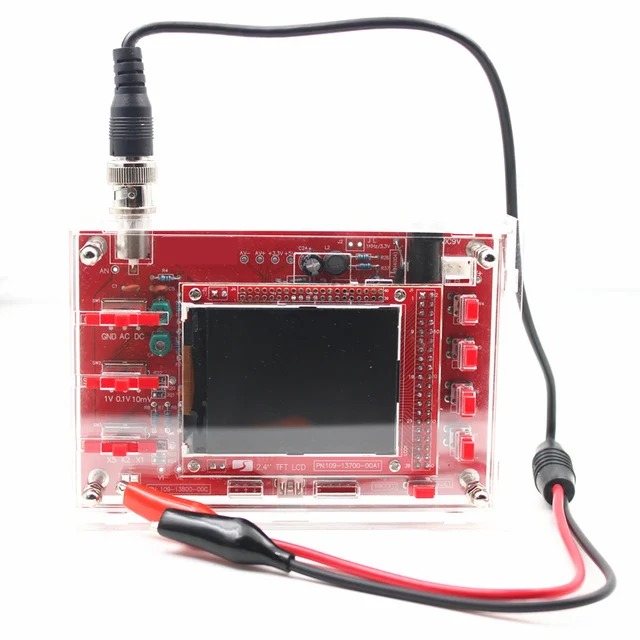

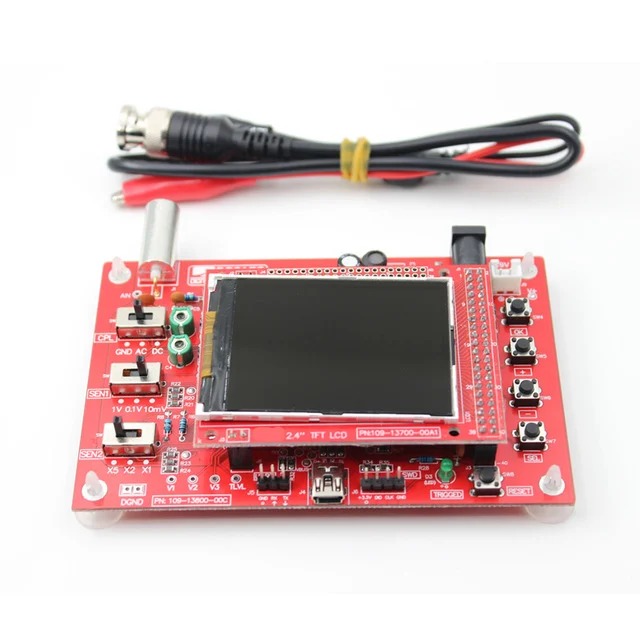

This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.
It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
This boost converter is a great match for DSO138 oscilloscope kit.
13
Items sold in last 3 minutes
18
People watching this product now!
Description
- This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen.
- Adjustable vertical displacement, and with instructions.
- With automatic, regular and one-shot modes, easy to capture the moment waveform.
- Available rising or falling edge trigger.
- Observable previous trigger waveform (negative delay).
- Can freeze at any time waveform display (the HOLD function).
- Maximum Real-time Sampling Rate: 1Msps
- Accuracy: 12Bit
- Sampling Buffer Depth: 1024 bytes
- Analog Bandwidth: 0-200KHz
Additional information
| Input Supply Voltage (VDC) |
9 |
|---|---|
| Impedance (Ω) |
1MΩ |
| Maximum Real-time Sampling Rate |
1Msps |
| Vertical Sensitivity |
10mV / Div – 5V / Div (1-2-5 progressive manner) |
