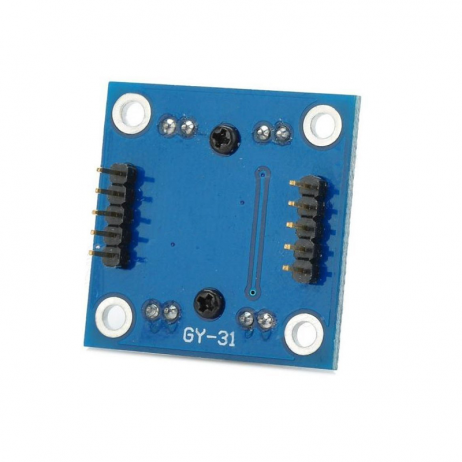

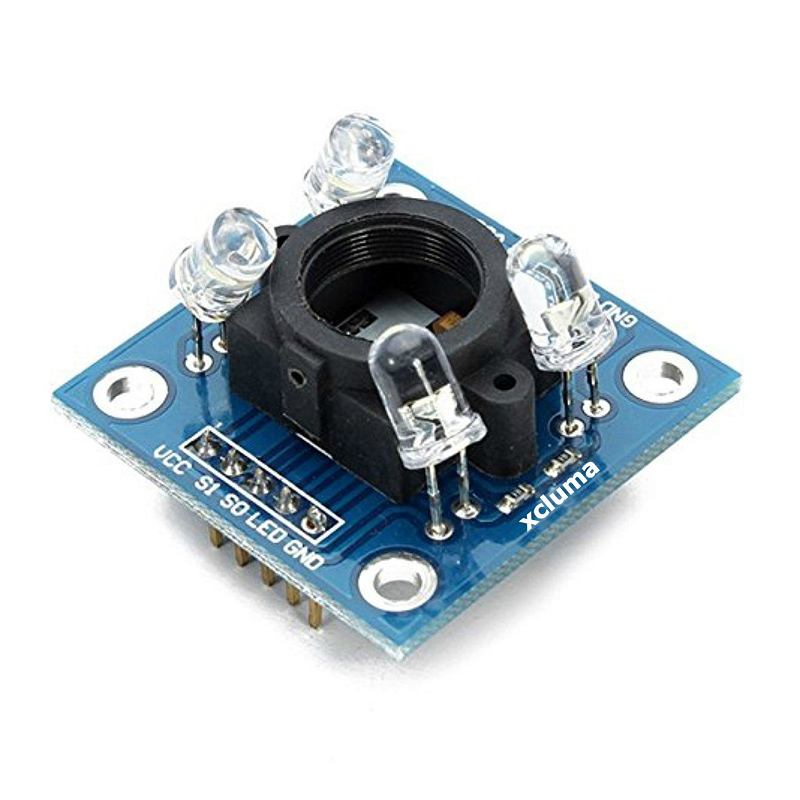

COLOR SENSOR TCS3200
GY-31 Color Sensor Module is made using IC TCS3200, a programmable color light to a frequency converter. It has configurable silicon photodiodes and a current to frequency converter in a single monolithic CMOS Integrated Circuit. Its output is a square wave having a 50% duty cycle with frequency directly proportional to irradiance (light intensity). This module can be directly interfaced with Microcontrollers, Arduino Boards, Raspberry Pi, etc.
19
Items sold in last 3 minutes
12
People watching this product now!
Description
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Power Down Feature
- Stable Temperature Coefficient
- Can be directly interfaced with a Microcontroller
Additional information
| Operating Voltage (VDC) |
2.7 ~ 5.5 |
|---|---|
| Operating Current |
25mA at 5V when LED is ON |
| Operating Temperature |
-45°C ~ 85°C |
| Non-linearity Error |
0.2% at 50KHz typically |
| Temperature Coefficient |
200 ppm/°C |
