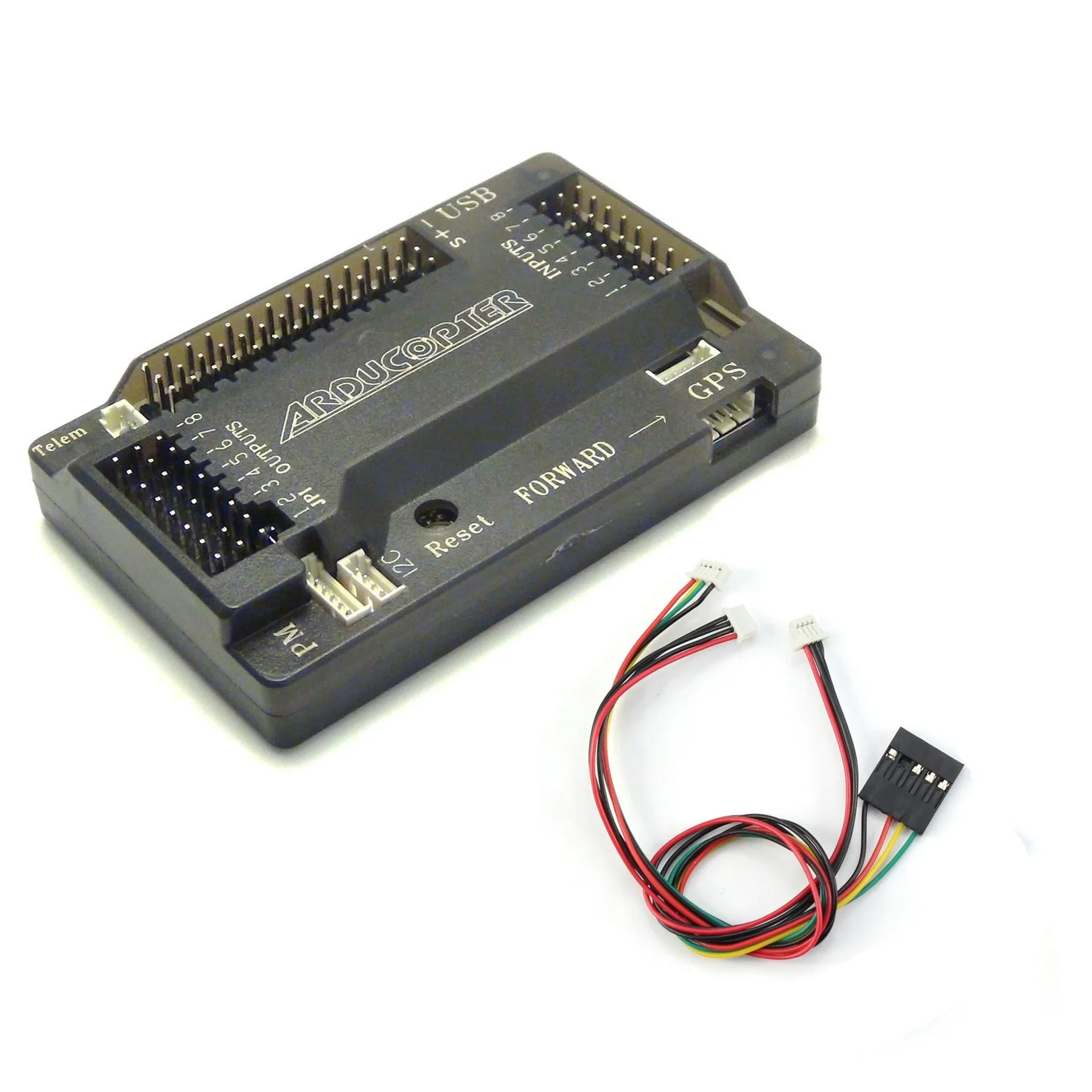

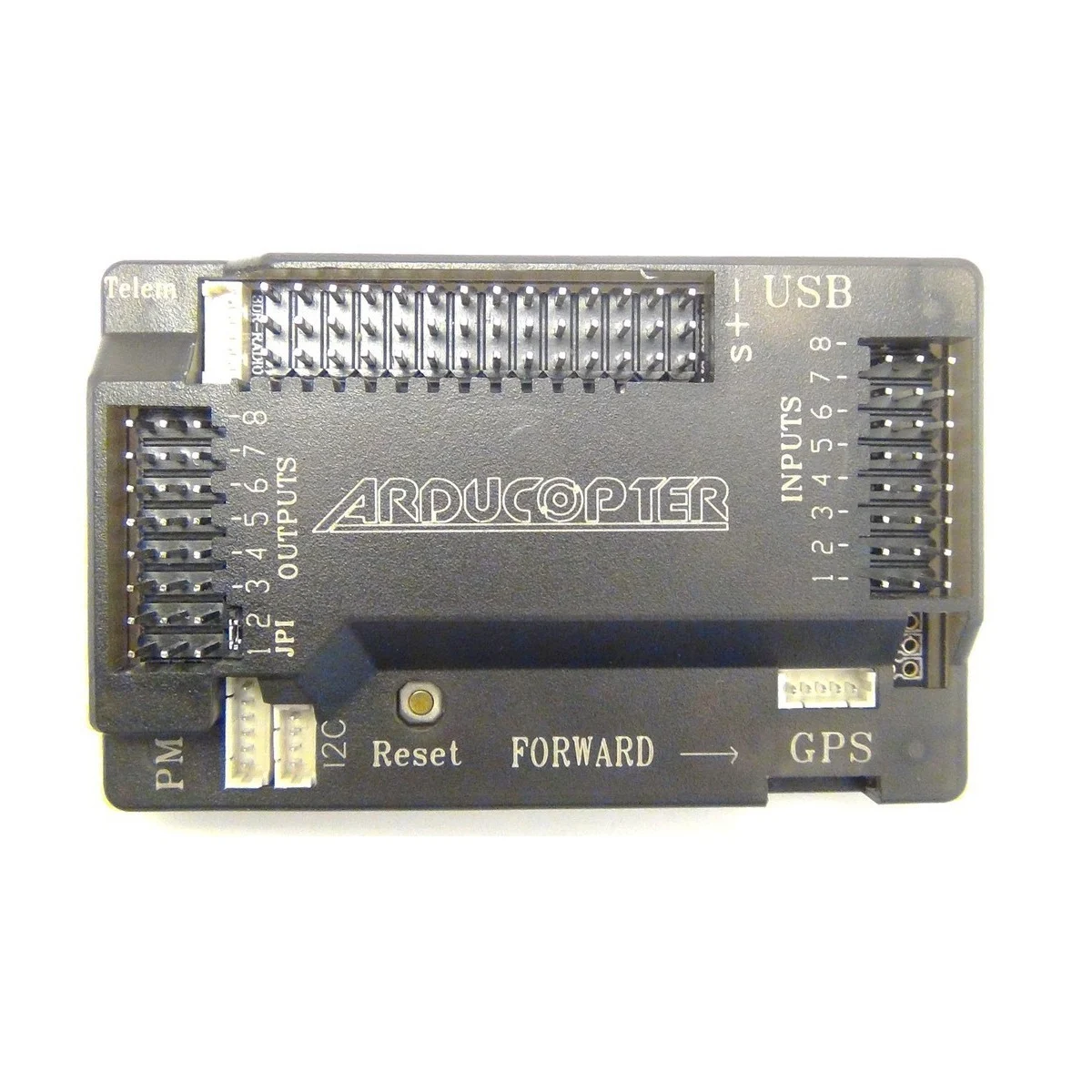

APM 2.8 Flight Controller with Built-in Compass
APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5 and 2.6 with a Built-in Compass for FPV RC Drone. The sensors are exactly the same as the APM 2.6 flight controller. However, the module has the option to use the built-in compass an external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.
The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system. This is the best-selling technology that won the prestigious Outback Challenge UAV competition.
10
Items sold in last 3 minutes
18
People watching this product now!
Description
- Straight Needle
- Arduino Compatible
- Onboard 4 MegaByte Dataflash chip for automatic data logging.
- Optional off-board GPS, a uBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
Additional information
| Power supply |
LP2985-3.3. |
|---|---|
| Input Voltage (V) |
12~16 VDC |
| Processor |
ATMEGA2560 and ATMEGA32U-2 |
| Dimensions (mm) LxWxH |
70 x 45 x 15 |
