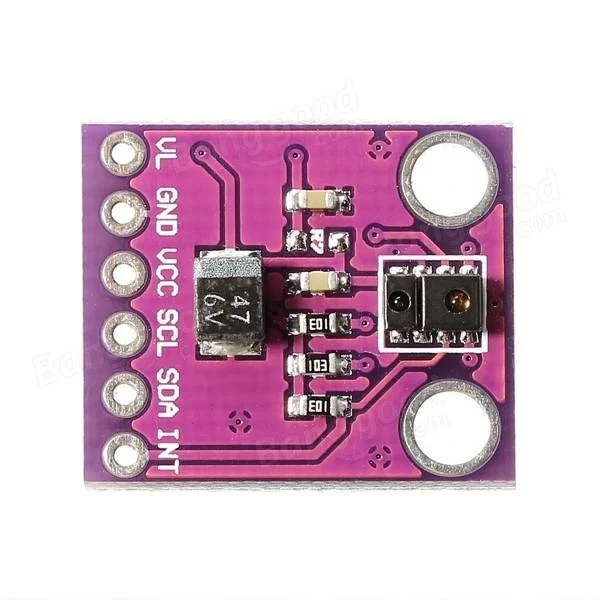

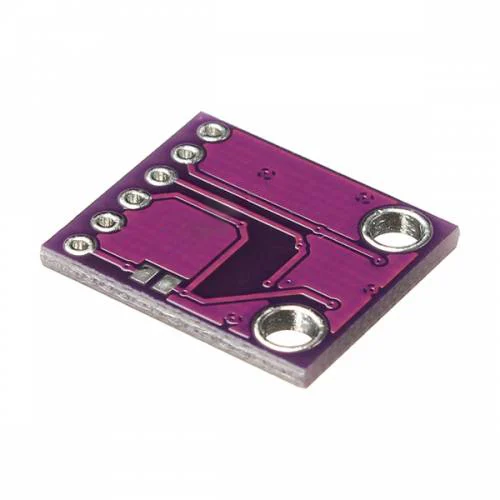

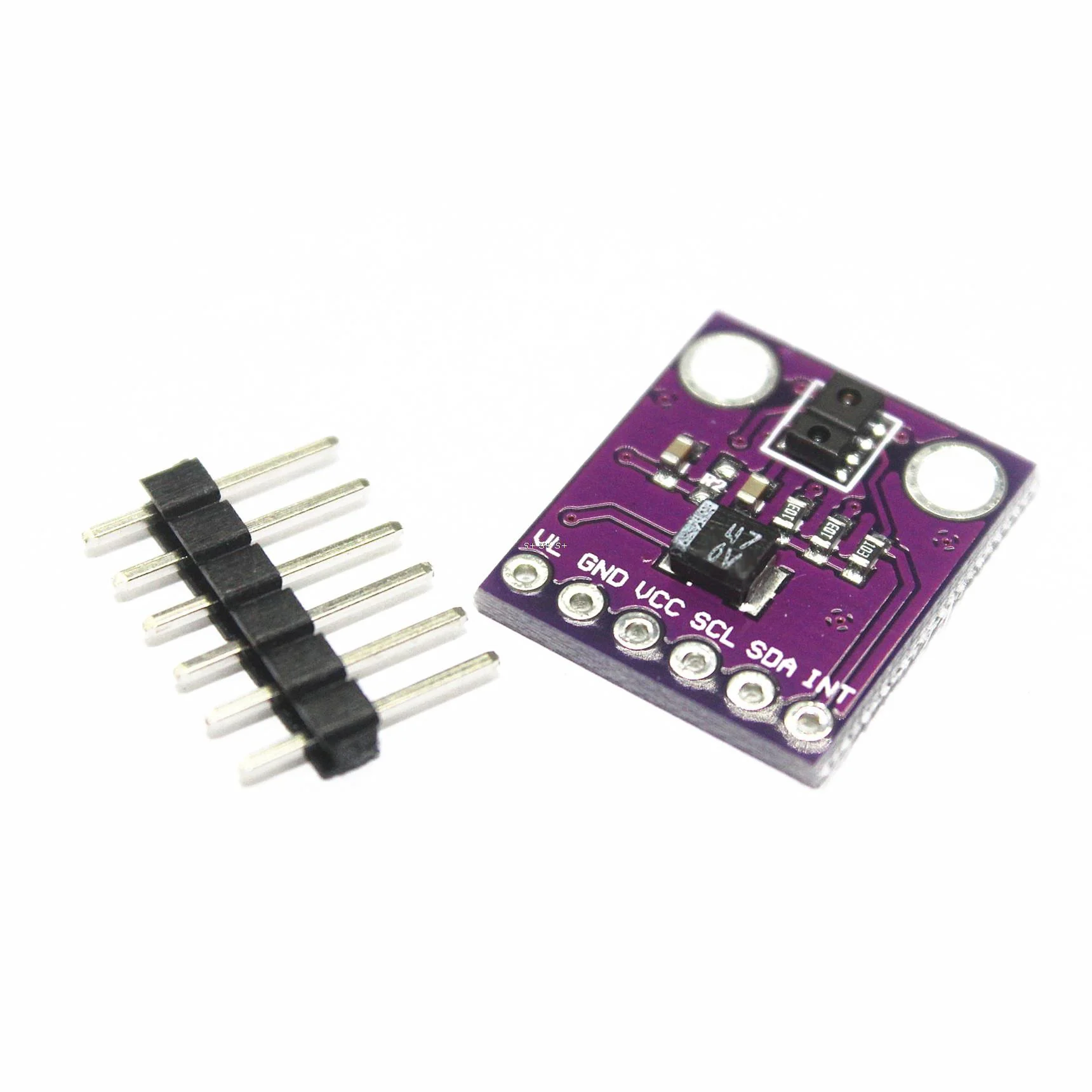

APDS 9930 MODULE
This is CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.
The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.
18
Items sold in last 3 minutes
18
People watching this product now!
Description
- Optical modules integrated with ALS, infrared LEDs and proximity detectors
- Ambient Light Sensing (ALS)
– Approximate human visual response
– Programmable interrupt capability with upper and lower thresholds
– Up to 16-bit resolution
– High sensitivity operation behind dark glass
– 0.01lux low lumen performance - Proximity detection
– Fully calibrated to 100 mm detection
– Integrated infrared LED and synchronous LED driver
– Eliminates factory calibration of the proximity sensor - Programmable wait timer
– Wait for state power consumption – 90μA typical
– Programmable range from 2.7 ms to more than 8 seconds - I2C interface compatible
– Up to 400kHz (I2C fast mode)
– Dedicated interrupt pin.
Additional information
| Operating voltage (v) |
2.8 ~ 3.8 |
|---|---|
| Resolution |
16-Bit |
| Wait State Power |
90 µA |
| Operating frequency (KHz) |
400 |
