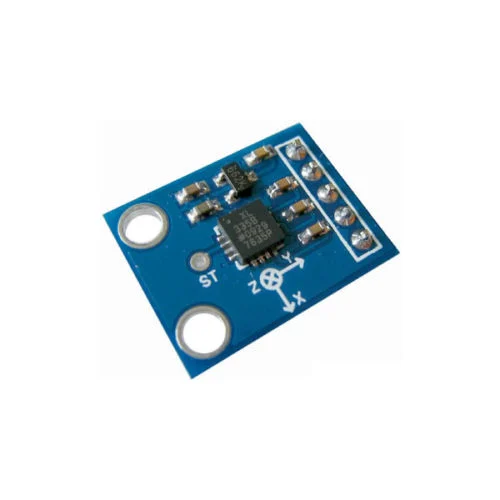

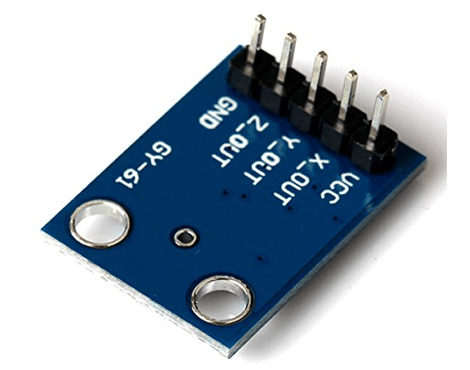

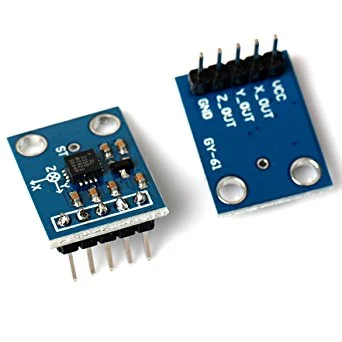

ADXL335
It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V).
20
Items sold in last 3 minutes
15
People watching this product now!
Description
The ADXL335 is a small, thin, low-power, complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL335 Module 3-axis Analog Output Accelerometer measures acceleration with a minimum full-scale range of ±3 g
- Onboard LDO Voltage regulator
- Can be interfaced with 3V3 or 5V Microcontroller.
- Tap/Double Tap Detection
- Free-Fall Detection
- Analog output
- Build in ultra low noise linear LDO voltage regulator
- Built-in onboard filters, which reduce noise from the motor and other high current electronics
- Power LED
Additional information
| Operating Temperature (°C): |
-40 to 90 |
|---|---|
| Length (mm): |
21 |
| Width (mm): |
16 |
| Height (mm) |
2.5 |
| Weight (g): |
0.6 |
