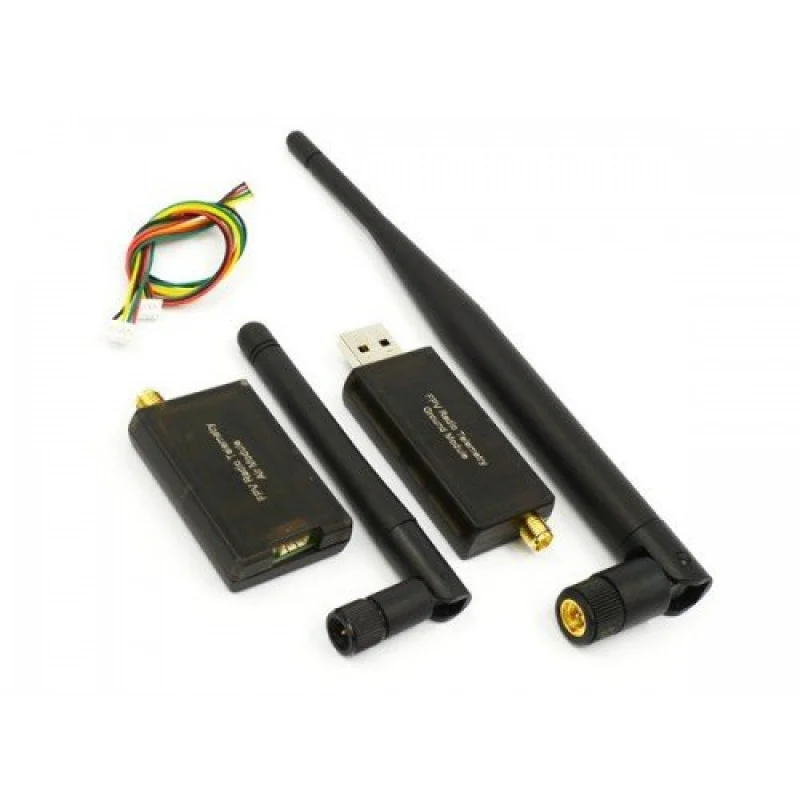

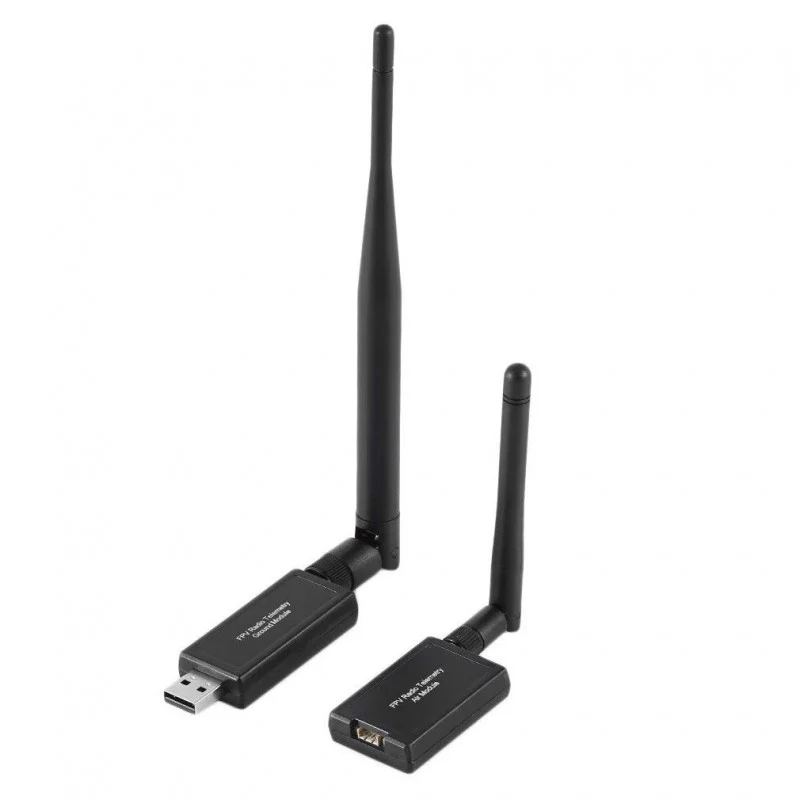

915Mhz 1000mW Mini Telemetry Kit
This is a 915Mhz 100mW Radio Telemetry Kit that is based on the 3DR Telemetry kit and is 100% compatible as it runs the same firmware onboard. This firmware used by 3D Robotics is completely open-source which is, of course, the reason we are able to use it on our own version at Unmanned Tech.The full features and specifications are listed below but the main features are that both air and ground modules are now interchangeable, and each is with a USB connector and a DF13 connector. Please note that to connect to Pixhawk, it is a good idea to also purchase a 6-pos to 6-pos cable as this is easier and better than using the cable included.
15
Items sold in last 3 minutes
18
People watching this product now!
Description
- Small size and lightweight
- CP2102 high-quality USB to TTL chips
- 915MHZ
- Support MWC / APM / PX4 / Pixhawk other open-source flight control
- MAVLink Framework Agreement
- Open Source Firmware Frequency-hopping spread spectrum (FHSS)
- 2-way full-duplex communication adaptive TDM
- Up to 25% can be corrected bit errors

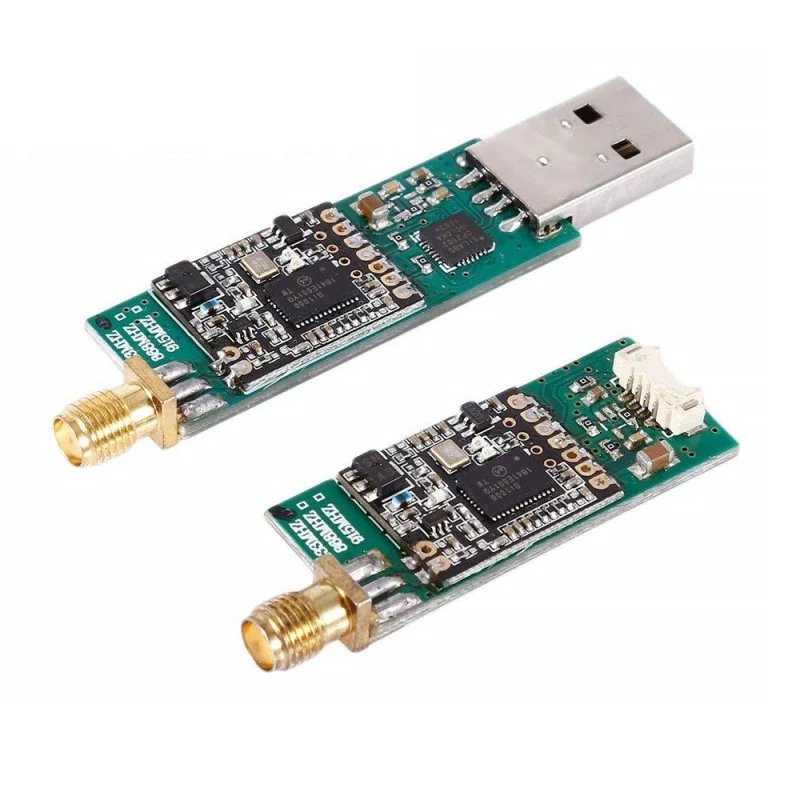

- Based on Si1000 and Si4432 wireless microcontroller modules.
Additional information
| Rated Power (mW) |
100 |
|---|---|
| Range(m) |
1600 |
| Receive Sensitivity(dBm) |
-117 |
| Operating Temperature (°C) |
-10 to 85 |
