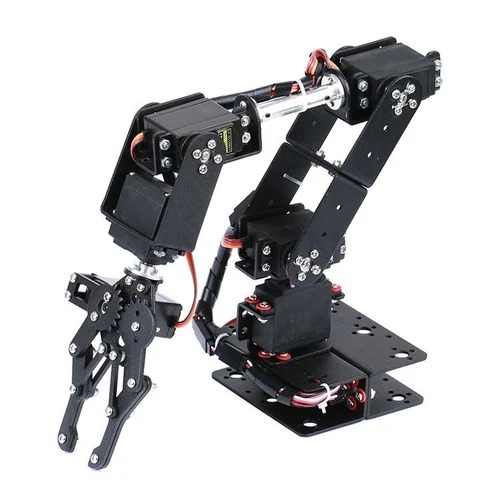

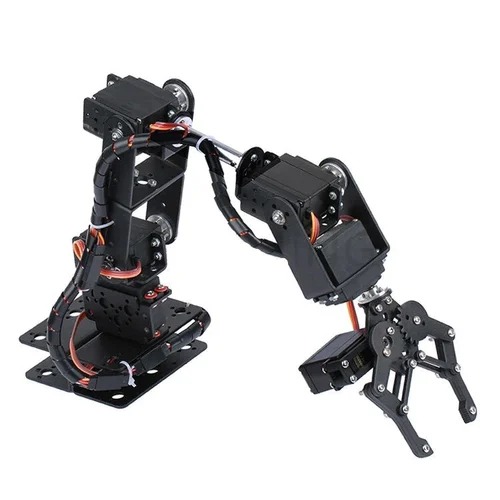

6 dof robotic arm full kit
Metal alloy mechanical arm with 6 Degree Of Freedom. The kit is delivered in a simple carton. The subassemblies are packaged in separate bags. The structural elements of the robotic arm are made by stamping aluminum plate. To give a better appearance and deburr the edges, the pieces are sandblasted. Black anodising (visible on the assembly instructions) has been abandoned.
10
Items sold in last 3 minutes
20
People watching this product now!
Description
- Dimension : 40mm x 19mm x 43mm
- Net weight: 69g
- Color: Black
- Operating Speed : 0.17sec / 60 degrees (4.8V no load)
- Operating Speed : 0.13sec / 60 degrees (6.0V no load)
- Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
- Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
- Operation Voltage : 4.8 – 7.2Volts
- Gear Type: All Metal Gears
Additional information
| DIMENSION |
40mm x 19mm x 43mm |
|---|---|
| NET WEIGHT |
69g |
| Operating Speed |
: 0.17sec / 60 degrees (4.8V no load) |
